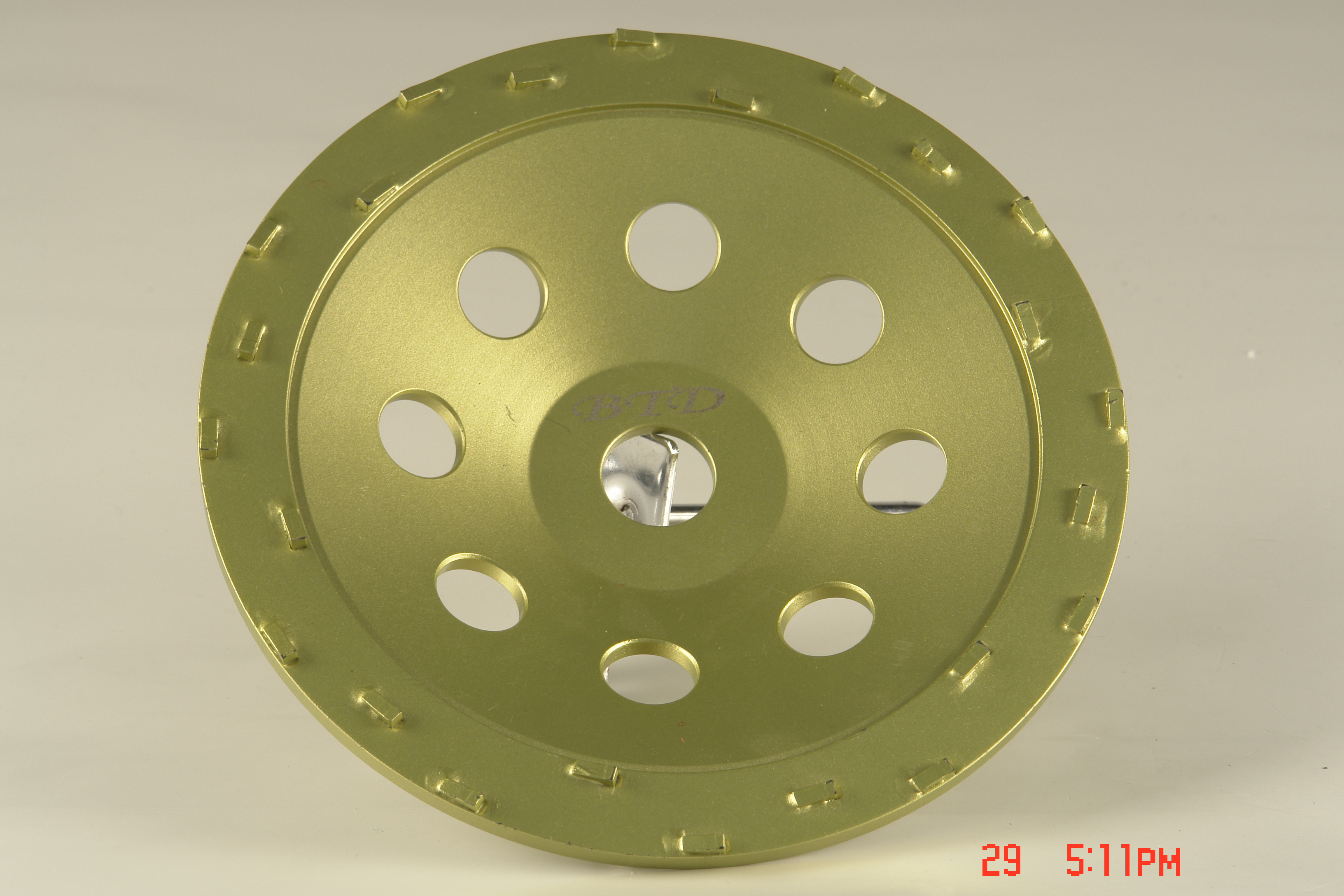

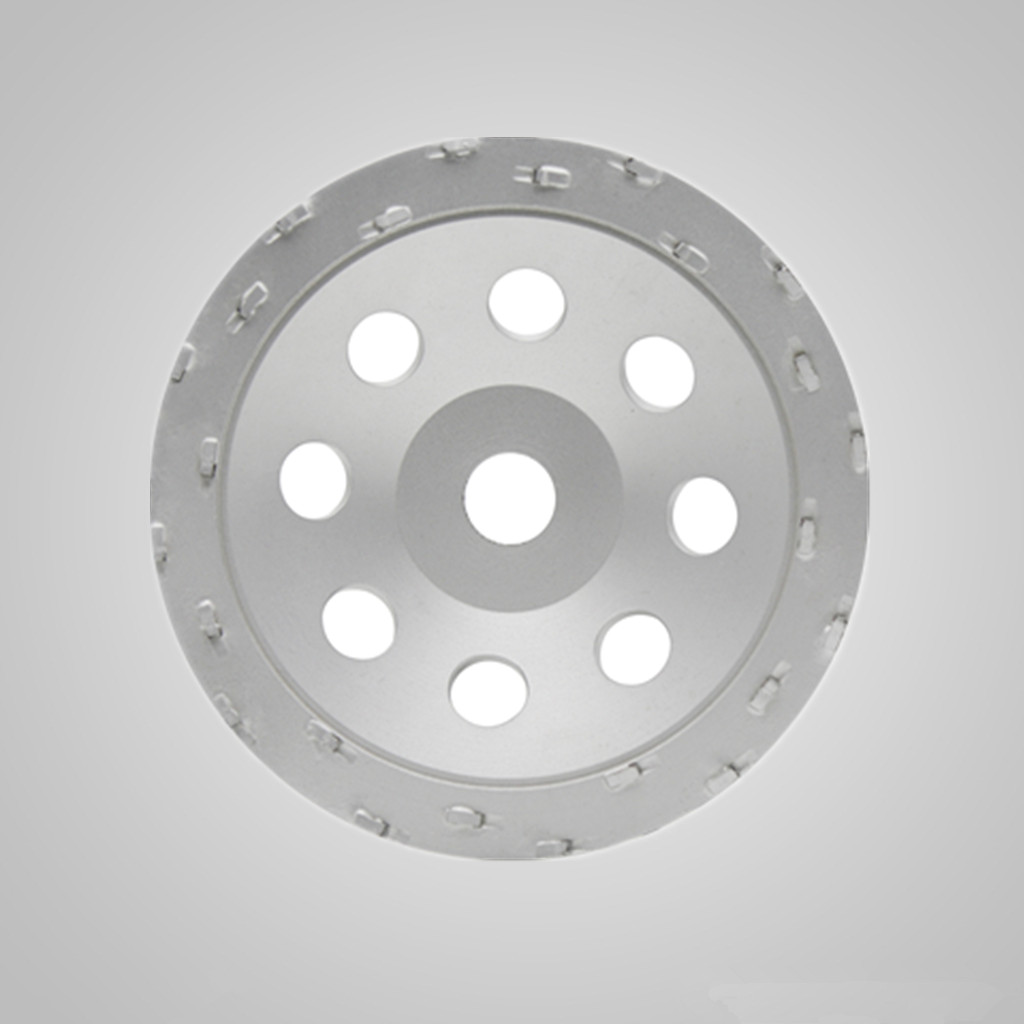

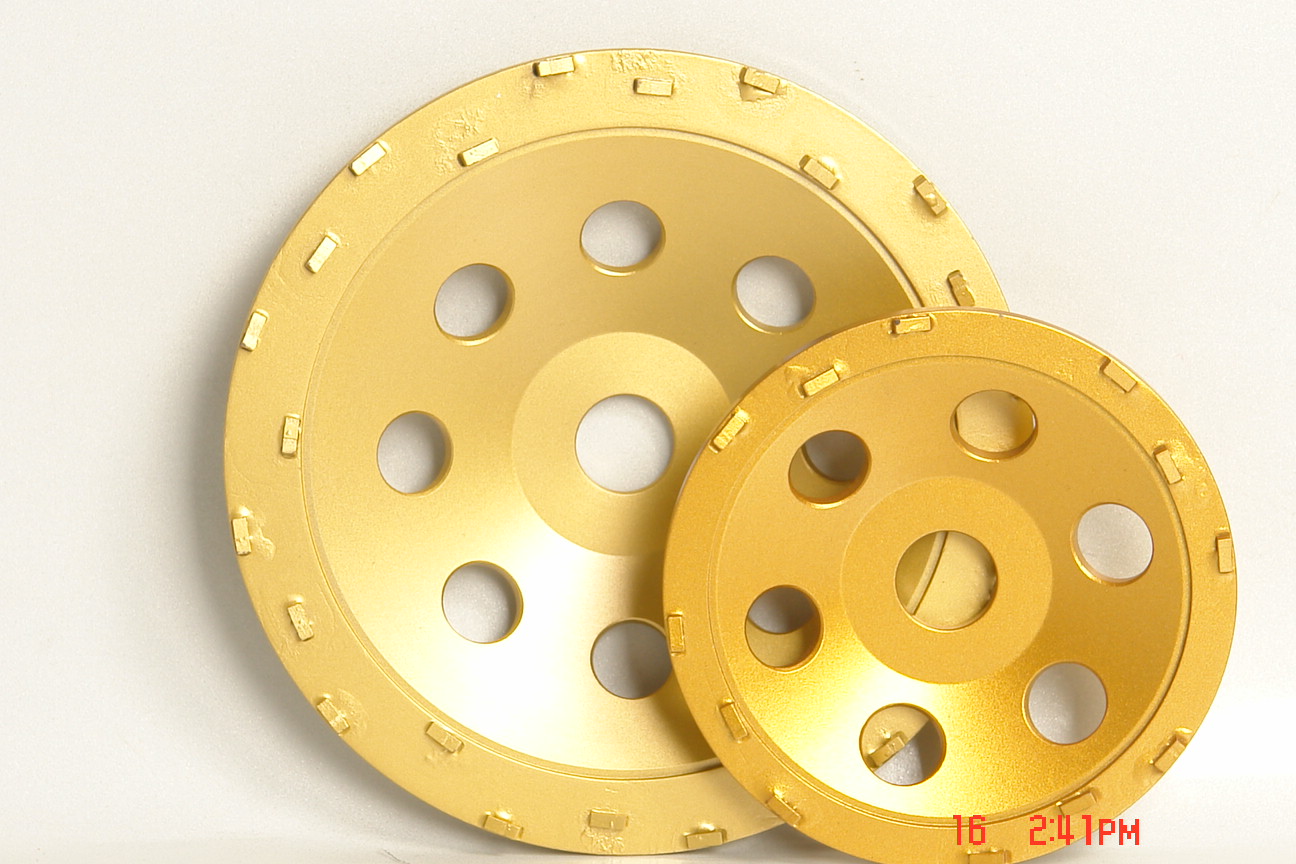

Double row PCD cup wheels
- Type：
- Description：
Double row PCD cup wheels
1.PCD grinding cup wheel ,
2.size :4'' 5'' 7'' 9'' 10''
3.professinal factory
4.ISO9001
1. Application: Our PCD grinding cup wheels and PCD wings widely used in many grinding applications,like removal of paint, epoxy (epoxy grinding PCD wheel), glue and resin off of concrete floors (concrete PCD cup wheel). PCD small segments welded on the cup wheel surface.
2. Size: PCD size is 3mmx3mmx2.4mm or similar sizes, Our PCD grinding cup wheels can be 4 inch ,5 inch,6 inch and 7 inch, etc,we can make special wheels according to request of specifiactions.
|
Product Name |
Item No. |
Segment Size |
Segment Qty |
|
PCD Cup Wheel (1) |
105(4“ ) |
3x3x8mm |
9T |
|
115(4.5” ) |
3x3x8mm |
9T |
|
|
125(5“ ) |
3x3x8mm |
12T |
|
|
180(7” ) |
3x3x8mm |
24T |
|
|
PCD Cup Wheel (2) |
105(4“ ) |
1/4φ 13x8mm |
5T |
|
115(4.5” ) |
1/4φ 13x8mm |
5T |
|
|
125(5“ ) |
1/4φ 13x8mm |
6T |
|
|
(7” ) |
1/4φ 13x8mm |
6T+3TCT |
|
|
PCD Cup Wheel (3) |
105(4“ ) |
3x3x2.4mm |
9T |
|
115(4.5” ) |
3x3x2.4mm |
9T |
|
|
125(5“ ) |
3x3x2.4mm |
12T |
|
|
180(7” ) |
3x3x2.4mm |
24T |
|
|
PCD Grind Wheel004 |
10" |
1/4φ 13x8mm |
12T+6TCT |
|
PCD Grind Wheel005 |
10" |
1/4φ 13x8mm |
12T+6TCT |
|
PCD Grind Wheel006 |
10" |
40x10x10mm |
20T |
